產品中心
|

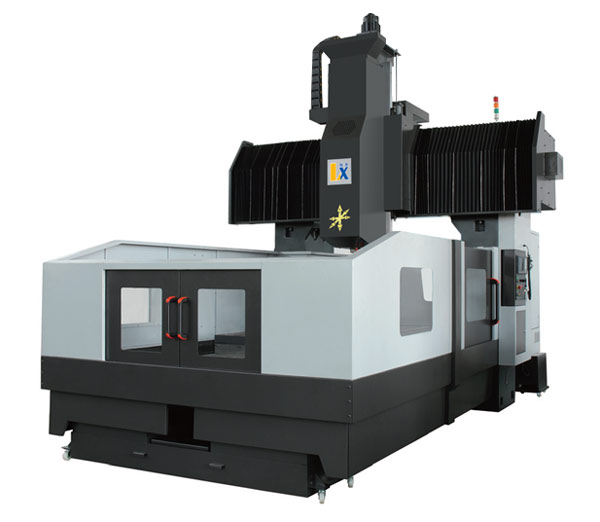

主要技術參數Main technical parameters |
|||
|
項目 Project |
單位Unit |
LX-2012 |
LX-2016 |
|
工作臺面積（長度x寬度）Table area (length x width) |
mm |
2000x1000 |
2000x1600 |
|
工作臺承重Table maximum bearing |
mm |
≤5000 |
≤6000 |
|
T型槽（槽數x槽寬x節距）T slot (number x width x distance) |
mm |
5-22x180 |
7-22x190 |
|
門寬Door width |
mm |
1500 |
1900 |
|
X軸/Y軸/Z軸行程 X axis /Y axis /Z axis travel |
mm |
2200/1200/800 |
2200/1600/800 |
|
主軸端面至工作臺面的距離Distance from spindle to table |
mm |
150-950 |
150-950 |
|
數控系統CNC system |
|
選配Select |
選配Select |
|
X軸/Y軸/Z軸快速移動 X axis /Y axis /Z axis rapid movement |
m/min |
10/10/8 |
10/10/8 |
|
切削進給速度 Maximum cutting feed rate |
m/min |
≤6 |
≤6 |
|
標準刀具數量 Standard tool quantity |
把handle |
BT50-24 |
BT50-24 |
|
刀具直徑/長度Maximum tool diameter / length |
mm |
Φ≤110/300 |
Φ≤110/300 |
|
刀具交換方式 Tool exchange mode |
|
氣動Pneumatic |
氣動Pneumatic |
|
刀具重量Max tool weight |
kg |
≤18 |
≤18 |
|
定位精度positioning accuracy |
mm |
0.025 |
0.025 |
|
重復定位精度Repeat positioning accuracy |
mm |
0.020 |
0.020 |
|
導軌形式Type of guide |
|
X.Y線軌 Z硬軌 X.Y wire rail Z hard rail |
X.Y線軌 Z硬軌 X.Y wire rail Z hard rail |
|
主軸規格Spindle specifications |
mm |
BT50/150 |
BT50/150 |
|
轉速Maximum speed |
rpm |
≤6000 |
≤6000 |
|
主軸馬達功率 Spindle motor power |
kw |
15/18.5 |
15/18.5 |
|
空氣需求Air demand |
Kg/cm2 |
≥6 |
≥6 |
|
氣源流量Gas flow |
m3/min |
≥0.5 |
≥0.5 |
|
機器重量Machine weight |
Kg |
15000 |
16000 |
|
外形尺寸（長x寬x高）Overall dimensions (length x width x height) |
mm |
6000x2940x4200 |
6000x3500x4200 |
|
主要技術參數Main technical parameters |
|||
|
項目 Project |
單位Unit |
LX-2512 |
LX-2516 |
|
工作臺面積（長度x寬度）Table area (length x width) |
mm |
2500x1200 |
2500x1600 |
|
工作臺承重Table maximum bearing |
mm |
≤6500 |
≤7500 |
|
T型槽（槽數x槽寬x節距）T slot (number x width x distance) |
mm |
5-22x180 |
7-22x190 |
|
門寬Door width |
mm |
1500 |
1900 |
|
X軸/Y軸/Z軸行程 X axis /Y axis /Z axis travel |
mm |
2700/1200/800 |
2700/1600/800 |
|
主軸端面至工作臺面的距離Distance from spindle to table |
mm |
150-950 |
150-950 |
|
數控系統CNC system |
|
選配Select |
選配Select |
|
X軸/Y軸/Z軸快速移動 X axis /Y axis /Z axis rapid movement |
m/min |
8/10/8 |
8/10/8 |
|
切削進給速度 Maximum cutting feed rate |
m/min |
≤6 |
≤6 |
|
標準刀具數量 Standard tool quantity |
把handle |
BT50-24 |
BT50-24 |
|
刀具直徑/長度Maximum tool diameter / length |
mm |
Φ≤110/300 |
Φ≤110/300 |
|
刀具交換方式 Tool exchange mode |
|
氣動Pneumatic |
氣動Pneumatic |
|
刀具重量Max tool weight |
kg |
≤18 |
≤18 |
|
定位精度positioning accuracy |
mm |
0.025 |
0.025 |
|
重復定位精度Repeat positioning accuracy |
mm |
0.020 |
0.020 |
|
導軌形式Type of guide |
|
X.Y線軌 Z硬軌 X.Y wire rail Z hard rail |
X.Y線軌 Z硬軌 X.Y wire rail Z hard rail |
|
主軸規格 Spindle specifications |
mm |
BT50/150 |
BT50/150 |
|
轉速Maximum speed |
rpm |
≤6000 |
≤6000 |
|
主軸馬達功率 Spindle motor power |
kw |
15/18.5 |
15/18.5 |
|
空氣需求Air demand |
Kg/cm2 |
≥6 |
≥6 |
|
氣源流量Gas flow |
m3/min |
≥0.5 |
≥0.5 |
|
機器重量Machine weight |
Kg |
18000 |
19000 |
|
外形尺寸（長x寬x高）Overall dimensions (length x width x height) |
mm |
6700x2940x4200 |
6700x3500x4200 |
|
主要技術參數Main technical parameters |
|||
|
項目 Project |
單位Unit |
LX-3012 |
LX-3016 |
|
工作臺面積（長度x寬度）Table area (length x width) |
mm |
3000x1200 |
3000x1600 |
|
工作臺承重 Table maximum bearing |
mm |
≤8000 |
≤9000 |
|
T型槽（槽數x槽寬x節距）T slot (number x width x distance) |
mm |
5-22x180 |
7-22x190 |
|
門寬Door width |
mm |
1500 |
1900 |
|
X軸/Y軸/Z軸行程 X axis /Y axis /Z axis travel |
mm |
3200/1200/800 |
3200/1600/800 |
|
主軸端面至工作臺面的距離Distance from spindle to table |
mm |
150-950 |
150-950 |
|
數控系統CNC system |
|
選配Select |
選配Select |
|
X軸/Y軸/Z軸快速移動 X axis /Y axis /Z axis rapid movement |
m/min |
8/10/8 |
8/10/8 |
|
切削進給速度 Maximum cutting feed rate |
m/min |
≤6 |
≤6 |
|
標準刀具數量 Standard tool quantity |
把handle |
BT50-24 |
BT50-24 |
|
刀具直徑/長度Maximum tool diameter / length |
mm |
Φ≤110/300 |
Φ≤110/300 |
|
刀具交換方式 Tool exchange mode |
|
氣動Pneumatic |
氣動Pneumatic |
|
刀具重量Max tool weight |
kg |
≤18 |
≤18 |
|
定位精度positioning accuracy |
mm |
0.025 |
0.025 |
|
重復定位精度 Repeat positioning accuracy |
mm |
0.020 |
0.020 |
|
導軌形式Type of guide |
|
X.Y線軌 Z硬軌 X.Y wire rail Z hard rail |
X.Y線軌 Z硬軌 X.Y wire rail Z hard rail |
|
主軸規格 Spindle specifications |
mm |
BT50/190 |
BT50/190 |
|
轉速Maximum speed |
rpm |
≤4000 |
≤4000 |
|
主軸馬達功率 Spindle motor power |
kw |
15/18.5 |
22/26 |
|
空氣需求Air demand |
Kg/cm2 |
≥6 |
≥6 |
|
氣源流量Gas flow |
m3/min |
≥0.5 |
≥0.5 |
|
機器重量Machine weight |
Kg |
20000 |
24000 |
|
外形尺寸（長x寬x高）Overall dimensions (length x width x height) |
mm |
8000x2940x4200 |
8000x3500x4300 |
|
主要技術參數Main technical parameters |
|||
|
項目 Project |
單位Unit |
LX-4012 |
LX-4016 |
|
工作臺面積（長度x寬度）Table area (length x width) |
mm |
4000x1200 |
4000x1600 |
|
工作臺承重Table maximum bearing |
mm |
≤12000 |
≤13000 |
|
T型槽（槽數x槽寬x節距）T slot (number x width x distance) |
mm |
7-22x170 |
7-22x190 |
|
門寬Door width |
mm |
1500 |
1900 |
|
X軸/Y軸/Z軸行程 X axis /Y axis /Z axis travel |
mm |
4200/1200/800 |
4200/1600/800 |
|
主軸端面至工作臺面的距離Distance from spindle to table |
mm |
150-950 |
150-950 |
|
數控系統CNC system |
|
選配Select |
選配Select |
|
X軸/Y軸/Z軸快速移動 X axis /Y axis /Z axis rapid movement |
m/min |
8/10/8 |
8/10/8 |
|
最大切削進給速度 Maximum cutting feed rate |
m/min |
5 |
5 |
|
標準刀具數量 Standard tool quantity |
把handle |
BT50-24 |
BT50-24 |
|
刀具直徑/長度Maximum tool diameter / length |
mm |
Φ≤110/300 |
Φ≤110/300 |
|
刀具交換方式 Tool exchange mode |
|
氣動Pneumatic |
氣動Pneumatic |
|
刀具重量Max tool weight |
kg |
≤18 |
≤18 |
|
定位精度positioning accuracy |
mm |
0.025 |
0.025 |
|
重復定位精度 Repeat positioning accuracy |
mm |
0.020 |
0.020 |
|
導軌形式Type of guide |
|
X.Y線軌 Z硬軌 X.Y wire rail Z hard rail |
X.Y線軌 Z硬軌 X.Y wire rail Z hard rail |
|
主軸規格 Spindle specifications |
mm |
BT50/190 |
BT50/190 |
|
最高轉速Maximum speed |
rpm |
4000 |
4000 |
|
主軸馬達功率 Spindle motor power |
kw |
22/26 |
22/26 |
|
空氣需求Air demand |
Kg/cm2 |
≥6 |
≥6 |
|
氣源流量Gas flow |
m3/min |
≥0.5 |
≥0.5 |
|
機器重量Machine weight |
Kg |
26000 |
30000 |
|
外形尺寸（長x寬x高）Overall dimensions (length x width x height) |
mm |
10000x3100x4300 |
10000x3600x4300 |
